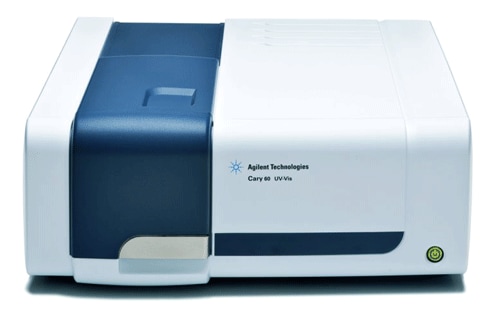

Agilent Cary 60 UV-Vis Spectrophotometer
Description
The Cary 60 is a compact, single-beam UV-Visible spectrophotometer designed for routine quantitative and qualitative analysis of liquid samples. The instrument employs a xenon flash lamp as the light source, providing wavelength coverage from 190 to 1100 nm. The optical system utilizes a Czerny-Turner monochromator with a fixed spectral bandwidth of 1.5 nm. Sample measurements are performed using standard 10 mm path length cuvettes in a single-cell holder. The instrument interfaces with a computer running Cary WinUV software for instrument control, data acquisition, and spectral analysis. The system is suitable for applications including concentration determination, kinetics studies, spectral scanning, and multi-component analysis.
Technical Details
| Specification | Value |
|---|---|
| Compliance Software | Cary WinUV Pharma |
| Connectivity | USB |
| Control Software | Cary WinUV for UV-Vis Applications |
| Depth | 567 mm |
| Height | 196 mm |
| Light Source | Xenon flash lamp (80 Hz) with 10-year warranty on new instruments |
| Maximum Scanning Speed | UV-Vis 24,000 nm/min |
| Photometric Range (Abs) | 4 Abs |
| Photometric System | Double beam |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Spectral Bandwidth | UV-Vis 1.5 nm |
| Wavelength | 190 - 1100 nm |
| Weight | 18 kg |
| Width | 477 mm |
| Z-height | 20 mm |
