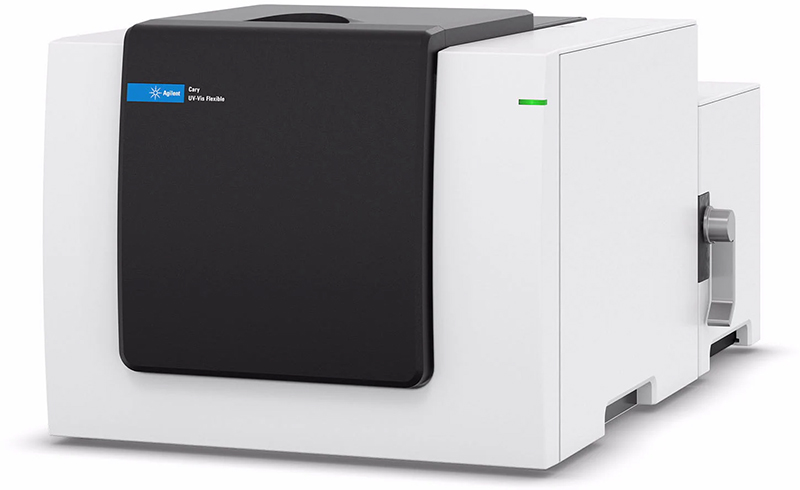

Agilent Cary 3500 UV-Vis Flexible
Description
The Cary 3500 Flexible UV-Vis Spectrophotometer is a double-beam ultraviolet-visible spectrophotometer designed for high-precision photometric measurements of both liquid and solid samples. It features a xenon flash lamp light source, eliminating warm-up time and reducing maintenance frequency. The instrument supports a wavelength range of 190–1100 nm and offers a variable spectral bandwidth from 0.1 to 5.0 nm, adjustable in 0.01 nm increments.
Technical Details
| Specification | Value |
|---|---|
| Compliance Software | OpenLab Software Suite |
| Control Software | Cary UV Workstation |
| Depth | 700 mm |
| Height | 345 mm |
| Light Source | Xenon flash lamp (250 Hz) with 10-year warranty on new instruments |
| Maximum Scanning Speed | UV-Vis 150,000 nm/min |
| Photometric Range (Abs) | 6 Abs |
| Photometric System | Double beam |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Spectral Bandwidth | UV-Vis 0.1 - 5.0 nm |
| Wavelength | 190 - 1100 nm |
| Weight | 31 kg |
| Width | 445 mm |
| Z-height | 15 mm |
Manuals
Agilent Cary 3500 UV-Vis Spectrophotometer User’s Guide
